A Derivation of Aerosol Optical Depth Estimates from Direct Normal Irradiance Measurements

1. Introduction

With the recent increase in fine particulate matter, there has been a growing public interest in aerosols. Aerosols refer to solid particles suspended in the atmosphere, which generally scatter or absorb the solar radiation reaching the Earth’s surface. The parameter that represents this effect is called the Aerosol Optical Depth (AOD), and monitoring AOD is important due to its spatial and temporal variability and its significant impact on climate change.^[1] The international program for AOD observation, AERONET (AErosol RObotic NETwork), began in the 1990s.^[2] However, AOD observations based on ground measurements face spatial limitations, which are supplemented by interpreting images monitored through satellites observing the Earth’s atmosphere.^[3,4] Nonetheless, AOD estimation from satellite images also involves errors due to its reliance on indirect observation techniques.

On the other hand, observations of solar radiation or insolation have been conducted over long periods.^[5] Considering that aerosols are a major factor in the attenuation of insolation, techniques for estimating aerosol concentration through insolation analysis have been researched (e.g.,^[6~11]). In the initial study, Linke^[6] calculated turbidity or haziness using Broadband Direct Normal Irradiance, considering that turbidity is influenced not only by aerosols but also by water vapor and the solar zenith angle, making it unsuitable to consider only the effects of aerosols. Unsworth and Monteith^[7] parameterized Broadband AOD as a function of the solar zenith angle and water vapor. More recently, Gueymard^[8] presented an algorithm for estimating Ångstrom turbidity β and Schüepp turbidity using a pyrheliometer. Qiu^[10] also proposed a method for estimating AOD between 619 and 1575 nm from Direct Normal Irradiance. Gueymard^[12] showed that Broadband Direct Normal Irradiance is sensitive to changes in AOD and suggested that it could be used to estimate AOD. However, most studies have been limited to BAOD, which differs from AOD at 500 nm.

In South Korea, the AERONET program is in operation, with a sunphotometer installed at the Yonsei University Science Center to observe AOD at different wavelengths. Concurrently, the Korea Institute of Energy Research is conducting observations of horizontal global irradiance and Direct Normal Irradiance at Seoul National University. Therefore, this study aims to calculate BAOD using Direct Normal Irradiance observations and predict AOD at 500 nm using the correlation between BAOD and AOD observed through a sunphotometer. AOD at 500 nm is usually employed in atmospheric sciences because visible rays are between 400 and 700 nm, and then the other atmospheric components like Ozone do not affect the attenuation of solar irradiance.

2. Broadband Aerosol Optical Depth

The transmittance due to trace gases (T_air), aerosols (T_sol), and gaseous substances (T_gas) in the atmosphere for the solar spectrum is defined as in equation (1).

Here, DNI represents the direct normal irradiance observed by a Pyrheliometer, and DNIo is equivalent to the solar constant. Moreover, m_sol, m_air, m_gas represent the atmospheric mass factors for aerosols, Rayleigh scattering, and gaseous substances, respectively. Particularly, since atmospheric gaseous substances are classified into various types, it is necessary to detail them. Gueymard^[8] categorized atmospheric gaseous substances into water vapor (w), ozone (oz), stratospheric nitrogen dioxide (ns), tropospheric nitrogen dioxide (nt), and unspecified gaseous substances. Using equation (1), the optical depth for aerosols can be organized as in equation (2).

In equation (2), assuming that the atmospheric mass factors for aerosols, water vapor, and tropospheric nitrogen dioxide are all the same, they can be expressed as a function of the solar zenith angle (θ), as presented by Gueymard and Vignola^[13] and Gueymard and Kambezidis.^[14]

For optical depths of trace gases other than aerosols, such as water vapor, the parameterization equations provided by Gueymard^[8] were used for calculations.

3. Research Data and Method

3.2 Methodology

As presented in Fig. 1, this study calculated BAOD using direct normal irradiance, precipitable water, ozone, and nitrogen dioxide concentrations observed from 2016 to 2017, and developed a linear regression prediction model for AOD₅₀₀ through correlation analysis with AOD₅₀₀ observed at the AERONET site. This linear regression model was validated by comparing it with AOD₅₀₀ at the same site in 2018.

Fig. 1.

Flowchart for research

4. Results and Discussions

To understand the correlation between direct normal irradiance and meteorological factors for the period 2016 to 2017, Fig. 2 shows the correlation between the atmospheric mass factor for Rayleigh scattering and τ_c, indicating an inverse relationship with the atmospheric mass factor. To analyze the attenuation effect due to water vapor, a scatter plot between precipitable water and τ_w is presented in Fig. 3. The coefficient of determination is 0.67, and the slope shows a positive value. The somewhat low coefficient of determination suggests that factors attenuating direct normal irradiance include not only precipitable water but also the atmospheric mass factor (solar zenith angle), which also affects the solar zenith angle. Lastly, Fig. 4, comparing tropospheric nitrogen dioxide concentration and its impact on τ_nt, shows that nitrogen dioxide optical depth is directly affected by tropospheric nitrogen dioxide concentration, although its magnitude is smaller compared to other optical depths (τ_c and τ_w).

Fig. 2.

Scatter plot of air mass factor and τc from 2016 to 2017 at Yonsei University

Fig. 3.

Same as Fig. 2 except of precipitable water and τw

Fig. 4.

Same as Fig. 2 except of NO2 and τnt

Using equation (2), (3), and (4), BAOD was calculated for the verification period (2016 to 2017). The relative frequency distribution of BAOD presented in Fig. 5 shows a Gamma distribution, with the highest frequency occurring between 0.06 and 0.10, accounting for 20% of the total datasets. The median of the overall distribution appears in the range where BAOD is 0.07 - 0.08, with about 50% occurring when it is less than 0.1.

Fig. 5.

Frequency of BAOD estimated by DNI observations at Seoul National University from 2016 to 2017

Since the time resolution of direct normal irradiance is 1 minute, BAOD calculated using instantaneous direct normal irradiance was compared with AOD₅₀₀, and then BAOD and AOD₅₀₀ were compared on an hourly, daily, and monthly basis by reducing the time resolution. The comparison between instantaneous BAOD and AOD₅₀₀ in Fig. 6 shows a coefficient of determination of 0.70 and a slope of 1.2, indicating that AOD at 500 nm is generally about 20% larger than the broadband aerosol optical depth.

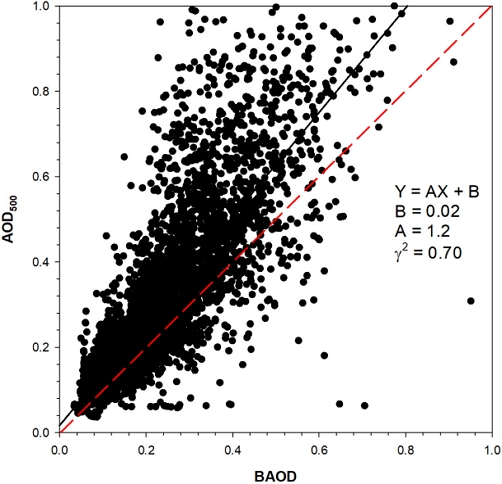

Fig. 6.

Scatter plot of BAOD at Seoul National University and AOD500 at Yonsei University at instantaneous time scale from 2016 to 2017

When comparing hourly BAOD and AOD₅₀₀, the coefficient of determination is similar, but the distribution of data decreases, which is due to the smoothing effect of averaging (not shown). Through these relationships, aerosol optical depth can be estimated with BAOD, defined as in equation (6).

BAOD obtained from direct normal irradiance observed in 2018 was calculated, and AOD₅₀₀ was estimated using equation (5), then compared with AOD₅₀₀ actually observed during this period. The coefficient of determination is 0.73, which translates to a correlation coefficient of about 0.85, indicating a relatively high correlation. The slope between the estimated and measured values is 0.74, suggesting that the estimates are lower than the measurements, indicating underestimation (Fig. 7). Therefore the estimation could be limited in a specific AOD range.

Fig. 7.

Scatter plot of observed and predicted AOD500 at hourly time scale in 2018

The correlation between daily average AOD₅₀₀ and BAOD observed from 2016 to 2017 was analyzed and presented in Fig. 8. Compared to the hourly comparison, the distribution of data is reduced, and the trend is clearer. Therefore, the coefficient of determination is 0.81, and the correlation coefficient is 0.90, which is high. Through these relationships, daily AOD₅₀₀ was defined as follows:

Fig. 8.

Same as Fig. 6 except at daily time scale

The comparison of measured AOD₅₀₀ in 2018 with the validation results is shown in Fig. 9. The coefficient of determination for the daily AOD₅₀₀ estimates increased to 0.79 compared to the hourly AOD₅₀₀ estimates. The daily AOD₅₀₀ estimates also show a tendency to underestimate compared to the measurements, maintaining consistency with the hourly AOD₅₀₀ estimates.

Fig. 9.

Same as Fig. 7 except at daily time scale

Lastly, to estimate monthly average AOD₅₀₀, BAOD was compared from 2016 to 2017. The coefficient of determination between the two physical quantities is 0.96, indicating that 96% of the explanatory power for AOD₅₀₀ can be attributed to BAOD, suggesting that BAOD can be used to estimate monthly average AOD₅₀₀ in the future. Equation (8) represents the linear correlation formula for monthly average AOD₅₀₀ based on BAOD.

Monthly average AOD₅₀₀ estimates were compared with monthly average AOD₅₀₀ observed in 2018 (Fig. 10). The Root Mean Square Error (RMSE) of the estimates against the measurements is about 0.038, indicating high reliability of AOD₅₀₀ estimated with BAOD, along with daily AOD₅₀₀.

Fig. 10.

Same as Fig. 7 except at monthly time scale

Table 1 summarizes the RMSE between the estimates and measurements of hourly, daily, and monthly average AOD₅₀₀, showing that AOD₅₀₀ derived from BAOD is more accurate compared to the RMSE range of AOD₅₀₀ estimates from satellite images.

Table 1.

Summary of root mean square error between observation and estimations for AOD500 at hourly, daily and monthly time scale

5. Conclusions

In this study, we have demonstrated a method for estimating Aerosol Optical Depth (AOD) using Broadband Aerosol Optical Depth (BAOD) derived from direct normal irradiance and meteorological factors observed between 2016 and 2017. Through detailed correlation analyses between BAOD and atmospheric components such as Rayleigh scattering, water vapor, and tropospheric nitrogen dioxide, we found significant relationships that are crucial for accurate AOD estimation. The results show that BAOD can reliably estimate AOD₅₀₀, with the methodology exhibiting high correlation coefficients and low Root Mean Square Errors (RMSE) when compared to actual AOD₅₀₀ measurements. This suggests that the attenuation effects of water vapor and the direct impact of tropospheric nitrogen dioxide concentration are key factors in the precise estimation of aerosol optical depth.

Furthermore, the application of BAOD for estimating AOD₅₀₀ across various time scales—hourly, daily, and monthly—highlights the robustness of this approach in understanding aerosol distributions and their optical properties. The high coefficient of determination (0.96) for monthly average AOD₅₀₀ estimates emphasizes the potential of BAOD as a predictive tool for aerosol optical depth. This study not only simplifies the aerosol monitoring process but also enhances the accuracy and reliability of AOD estimations, contributing valuable insights into aerosol research and its implications for soiling impact in Photovoltaic system. The advancement presented in this study underscores the viability of using BAOD as a surrogate for direct AOD₅₀₀ measurements, offering a promising avenue for more accessible and accurate aerosol monitoring practices, which is crucial for improving our understanding of aerosol dynamics and their environmental impacts.
